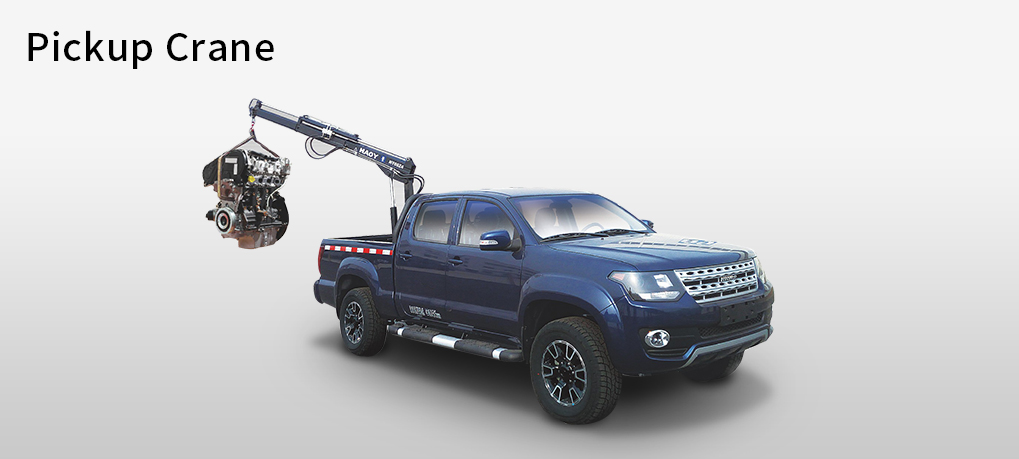

The truck is equipped with a folding-jib crane (model: HY08,HA10) with the weight of 160Kg and maximum lifting load of 445Kg. Side footboard, wheel rim, rope hooks on both sides of rear cargo box, rear landing legs and folding-jib crane are optional for installation. The maximum net power of the engine: 99 kW.
Specifications
| Name | DD5030JSQ Pickup Crane |
| Size: L?x?W?x?H（mm） | 5560x1840x2048,2098 |
| Cargo compartment dimension(mm) | 1815x1520x515 |
| G.V.W.(kg)（kg） | 2795 |
| Curb mass(kg) | 2150 |
| Rated loadkg) | 320 |
| Wheel base（mm） | 3405 |
| Number of axles | 2 |
| ABS | nothing |
| Approaching angle/ departure angle | 32/26 |
| Front?&?rear?overhang(mm) | 895/1260 |
| Maximum?speed（km/h） | 150 |
| Tire?number | 4 |
| The specification of tires | 245/65R17,265/65R17 |
| Front track | 1538,1548 |
| Rear track | 1538,1548 |
| Oil consumption rate(L/100Km) | 10.7 |
| Emission?standard | GB18352.5-2013 Guo V |
