Various parts are optional for installation on the chassis. Two types of mounting bracket (type A and type B) and two types of spreader (type A and type B) are optional for installation on the front of the vehicle. With the type A mounting bracket and type A spreader installed, front/rear overhang: 2335/2500mm, total vehicle length: 10235mm, total vehicle height:3280mm; With snow shovel (required during snow cleaning operation) installed, front overhang: 1300mm, total vehicle length:11535mm; With snow roller brush (required during snow cleaning operation) installed, front overhang: 1180mm, total vehicle length:11415mm; With the type B mounting bracket and type B spreader installed, front/rear overhang: 1730/2740mm, total vehicle length: 9870mm, total vehicle height: 3480mm; Side protection: Q235A, bolt connection; Rear protection: Q235A, bolt connection, section size: 120mm x 50mm, ground clearance: 500mm; ABS model: CM4XL; ABS manufacturer: Changchun Kemi Automobile Brake Systems Co., Ltd.; Equipped with a satellite positioning driving recorder.
Specifications

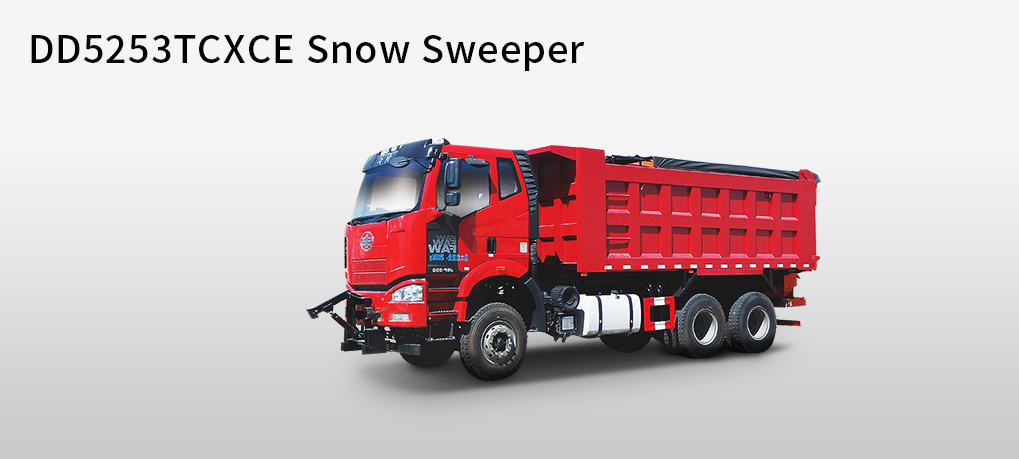

| Name | DD5253TCXCE Snowplow |
| Size: L?x?W?x?H(mm) | 11535,11415,10235,9870 X 2500x3280,3430 |
| Cargo compartment dimension(mm) | - |
| G.V.W.(kg)(kg) | 25000 |
| Curb mass(kg) | 16100 |
| Rated loadkg) | 8705,8770 |
| Wheel base(mm) | 4050+1350 |
| Number of axles | 3 |
| ABS | have |
| Approaching angle/ departure angle | 11/19 |
| Front?&?rear?overhang(mm) | 2335/2500,1730/2740 |
| Maximum?speed(km/h) | 79 |
| Tire?number | 10 |
| The specification of tires | 12R22.5,11.00R20,11,00-20,12.00R20 16PR,12.00-20 18PR |
| Front track | 2020 |
| Rear track | 1847/1847,1878/1878 |
| Oil consumption rate(L/100Km) | - |
| Emission standard | GB17691-2005 guo V .GB3847-2005 |
