With snow shovel (required during snow cleaning operation) installed, front overhang: 1300mm, total vehicle length:12090mm; With snow roller brush (required during snow cleaning operation) installed, front overhang: 1340mm, total vehicle length:12130mm; Side protection: Q235B, bolt connection; Rear protection: Q235A, bolt connection, section size: 120mm x 50mm, ground clearance: 530mm; Center ice shovel is optional for installation during the ice cleaning operation; Front tire model: 385/65R22.5; Back tire model: 315/80R22.5; ABS model: ESP8.1; ABS manufacturer: BOSCH; Equipped with a satellite positioning driving recorder. The vehicle is used to remove ice and snow from roads in winter; The optional material and devices for the vehicle are: deicing agent, spreader, snow shovel, snow roller brush and ice shovel.
Specifications

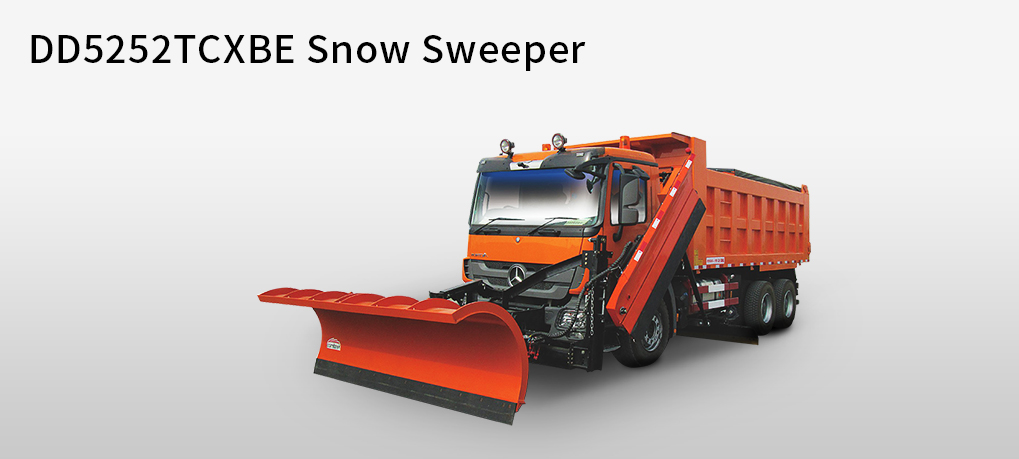

| Name | DD5252TCXBE Snowplow |
| Size: L?x?W?x?H（mm） | 12130,12090,10790 x 2550 x 3370 |
| Cargo compartment dimension(mm) | - |
| G.V.W.(kg)（kg） | 25000 |
| Curb mass(kg) | 18000 |
| Rated loadkg) | 6870 |
| Wheel base（mm） | 4500+1350 |
| Number of axles | 3 |
| ABS | have |
| Approaching angle/ departure angle | 13/17 |
| Front?&?rear?overhang(mm) | 2810/2130 |
| Maximum?speed（km/h） | 90 |
| Tire?number | 10 |
| The specification of tires | 385/65R22.5/315/80R22.5 |
| Front track | 2036 |
| Rear track | 1804/1804 |
| Oil consumption rate(L/100Km) | - |
| Emission standard | GB17691-2005 guo V .GB3847-2005 |
