Various parts are optional for installation on the chassis. A front mounting bracket is installed on the front of the vehicle. With the snow shovel (required during snow cleaning operation) installed, front overhang: 890mm, total vehicle length: 9485mm; With the snow roller brush (required during snow cleaning operation) installed, front overhang: 1340mm, total vehicle length: 9935mm, rear spreader is optional for installation. Side protection: Q235A, bolt connection; Rear protection: Q235A, bolt connection, section size:50x120mm, ground clearance: 510mm; Equipped with a satellite positioning driving recorder; Wheelbase: 3800mm; ABS is optional for installation; ABS model: 3631010- C2000,4460046440; ABS manufacturer: Dongke Knorr Commercial Vehicle Brake Systems (Shiyan) Co., Ltd., WABCO Vehicle Control Systems (China) Co., Ltd.
Specifications

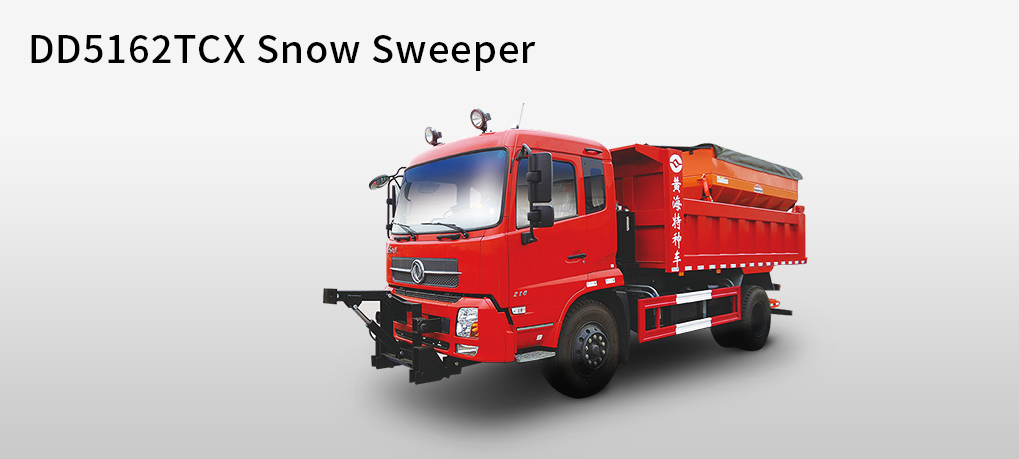

| Name | DD5162TCX Snowplow |
| Size: L?x?W?x?H（mm） | 9935,9485,859 x2496x3350 |
| Cargo compartment dimension(mm) | - |
| G.V.W.(kg)（kg） | 15800 |
| Curb mass(kg) | 9940 |
| Rated loadkg) | 5665 |
| Wheel base（mm） | 3800,4200,4500,4700,5000 |
| Number of axles | 2 |
| ABS | have |
| Approaching angle/ departure angle | 12/9 |
| Front?&?rear?overhang(mm) | 2330/2465 |
| Maximum?speed（km/h） | 90 |
| Tire?number | 6 |
| 彈簧片數(shù) | 7/9+6,8/10+8 |
| Front track | 1880,1900,1920 |
| Rear track | 1800,1860,1820 |
| Oil consumption rate(L/100Km) | - |
| Emission standard | - |
