A front mounting bracket is installed on the front of the vehicle. With the power unit installed, total vehicle length: 5610mm, total vehicle height:1960mm; With the spreader (optional) installed, total vehicle length: 6540mm, rear overhang: 930mm, total vehicle height: 1840mm; With the snow shovel and the power unit (required during snow cleaning operation) installed, total vehicle length: 6650 mm, front overhang: 1040mm, total vehicle height: 1960mm; With the snow shovel and the spreader (required during snow cleaning operation) installed, total vehicle length:7580mm, front overhang: 1040mm, rear overhang: 930mm, total vehicle height: 1840mm; With the snow roller brush and the power unit (required during snow cleaning operation) installed, total vehicle length: 7250 mm, front overhang: 1640 mm, total vehicle height: 1960 mm; Side footboard, wheel rim and front grille are optional for installation. The maximum net power of the engine: 99 kW.
Specifications

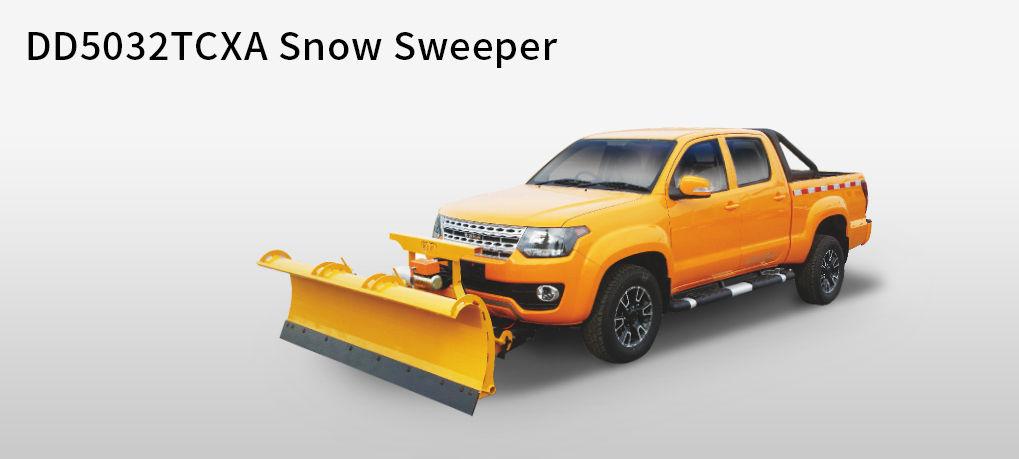

| Name | DD5032TCXA Snowplow For work |
| Size: L?x?W?x?H(mm) | 7580,7250,6650,6540,5610x1840x1960,1840 |
| Cargo compartment dimension(mm) | - |
| G.V.W.(kg)(kg) | 2735 |
| Curb mass(kg) | 2360 |
| Rated loadkg) | 50 |
| Wheel base(mm) | 3405 |
| Number of axles | 2 |
| ABS | nothing |
| Approaching angle/ departure angle | 13/26 |
| Front?&?rear?overhang(mm) | 945/1260 |
| Maximum?speed(km/h) | 150 |
| Tire?number | 4 |
| The specification of tires | 245/65R17,265/65R17 |
| Front track | 1538,1548 |
| Rear track | 1538,1548 |
| Oil consumption rate(L/100Km) | - |
| Emission?standard | GB18352.5-2013 Guo V |
